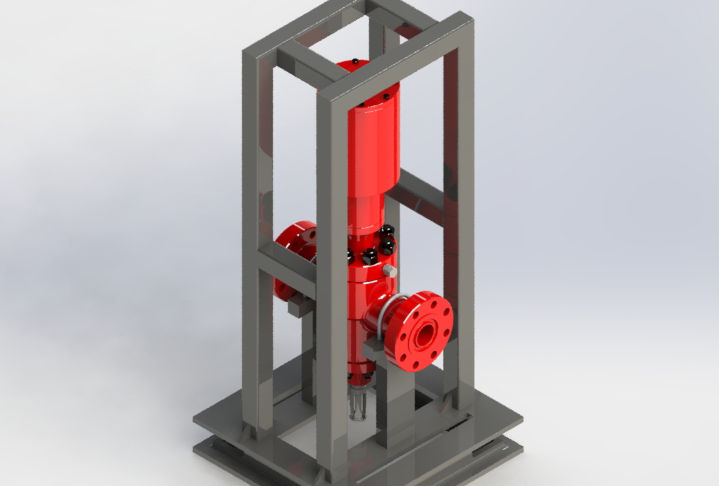

Surface Safety Valve (SSV)

General:

Surface safety valves (SSVs) are essential safety devices used in oil and gas production systems to prevent the uncontrolled release of hydrocarbons from the wellhead. They are designed to automatically shut off the flow of oil and gas in the event of an emergency, such as a blowout or equipment failure.

SSV is remotely operated by an emergency shutdown device (ESD), which can be triggered automatically by high or low pressure pilot actuators. If an emergency occurs, SSV can prevent explosion and reduce human injuries.

A number of SSV models are available for different well conditions (pressures, temperatures, and flow rates) and with various connections, such as hammer union and flange.

SSV is designed and made under API 6A standard. and relief valve can reduce shut time to 3 seconds.

Specifications:

Nominal diameter: 2.1/16" ~ 7.1/16"
Working pressure: 2000 PSI ~ 20000 PSI
Working media: oil, gas, H2S service
Working temperature: LU ( 51℉/-46℃ ~ 250℉/121℃)
Material grades: AA, BB, CC, DD, EE, FF, HH
Specification level: PLS1 ~ PSL4
Performance level: PR2

Features:

Prompt open/close control
Optional fire protection (fusible loop)
Used as a mater valve or a wing valve
Remotely operated with a high safety performance
It can reduce personnel exposure during emergencies
Separate stems can make them easy disassembling and maintaining
Fail-safe and remote activation and automatic well closure
Recommended for use in high pressure and/or large bore applications
