Shell&Tube Heat Exchanger

General:

A heat exchanger is a device that transfers heat from one medium to another. Heat exchangers are used in both cooling and heating processes. Heat exchangers are most commonly used in industrial facilities such as iron and steel, petroleum, petrochemical, gas, power plants, food, pharmaceuticals, leather, textiles, air conditioning, ships, and marine industries.

Shell and Tube Heat Exchangers are one of the most popular types of exchanger due to the flexibility the designer has to allow for a wide range of pressures and temperatures. There are two main categories of Shell and Tube exchanger: one is shell and tube heat exchangers that are used in the petrochemical industry and follow TEMA (Tubular Exchanger Manufacturers Association) standards; Another is those used in the heating industry, such as heat exchangers used in feedwater heating or condensers in thermal power plants.

Industrial-Grade Thermal Transfer Solution:

The shell and tube heat exchanger (STHE) is the most widely used type of heat transfer equipment in industrial processing. Recognized as the “workhorse” of industrial processes, this equipment accounts for the majority of heat transfer applications in refineries, gas plants, petrochemical facilities, and power generation stations worldwide.

Our shell and tube heat exchangers are engineered to deliver reliable, efficient thermal transfer between two fluids at different temperatures – without mixing them. Whether you need to heat, cool, condense, or vaporize process streams, our STHEs provide the performance and durability your operations demand.

How It Works?

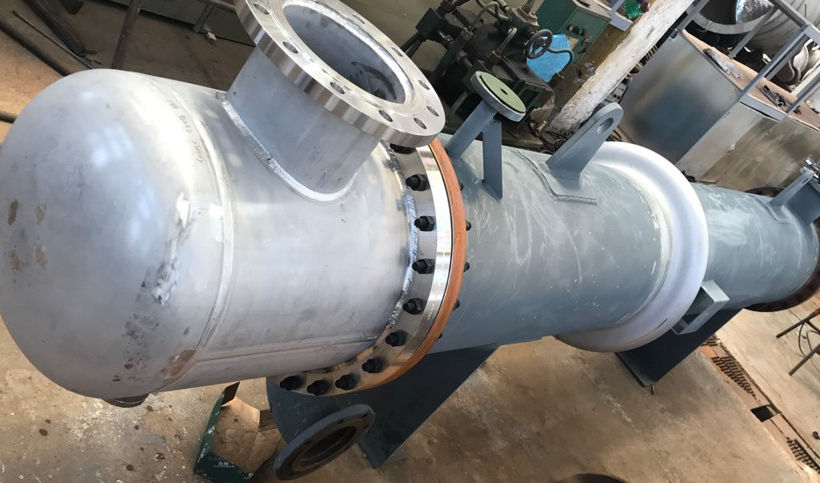

A shell and tube heat exchanger consists of a bundle of tubes enclosed within a cylindrical shell. One fluid flows through the tubes (tube side), while the other fluid flows over the tubes through the shell (shell side). Heat is transferred between the two fluids through the tube walls, with the fluids remaining physically separated at all times.

The flow configuration can be designed as countercurrent (most efficient, fluids flow in opposite directions), cocurrent (fluids flow in the same direction), or crossflow (shell fluid flows perpendicular to tube fluid). Strategically placed baffles serve two critical functions: they support the tubes to prevent vibration and sagging, and they channel the shell-side fluid to increase velocity and enhance heat transfer efficiency.

Features:

1. Parts of a Shell and Tube Heat Exchanger

Tube Bundle
Shell
Front Header
Rear Header

2. Main Types of Shell and Tube Heat Exchangers

Fixed Tube Sheet Heat Exchanger
U- Tube Heat Exchanger
Floating Head Heat Exchanger

3. Types of Shell and Tube Heat Exchanger Parts

Front Header Types
Rear Header Types
Shell Types
Baffle Types

4. Types of Shell and Tube Heat Exchanger Design

U-tube Heat Exchanger
Straight Tube Heat Exchanger

Types:

We offer all three primary configurations of shell and tube heat exchangers:

Each type can be customized with various tube materials (carbon steel, stainless steel, duplex, titanium, copper-nickel alloys), tube diameters (typically 3/4″ or 1″ OD), and tube layouts (triangular, square, or rotated-square pitch).

Changes in the main components of the structure make different types of shell and tube heat exchangers. Regardless of the industry in which this heat exchanger is used, a shell and tube heat exchanger is created from the following main components.

1. Tube Bundle
This set consists of the tubes, tube sheets, baffles, and tie rods to retain the bundle together.

2. Shell
The shell contains a tube bundle; one of the working fluids flows in the shell over the tubes.

3. Front Header
The front header also called the stationary header, is where the fluid enters the tube side of the exchanger.

4. Rear Header
The rear header is where the tube side fluid leaves the heat exchanger or in heat exchangers with multiple tube side passes, where it is returned to the front header.

industrial-tube-shell-heat-exhchager-design

Industry Applications:

Shell and tube heat exchangers are essential across a broad range of industries:

Oil & Gas – Crude oil heating/cooling, natural gas compression, condensers, reboilers, and heat recovery systems for upstream and downstream operations
Petrochemical & Chemical – Reactor heating/cooling, waste heat recovery, temperature regulation of chemicals and solvents during processing
Power Generation – Feed water pre-heating, cooling gearbox oil, seal water, generator core cooling, and exhaust gas heat recovery
HVAC & Refrigeration – Heat transfer between air and refrigerant for efficient cooling and heating in buildings
Food & Beverage – Pasteurization, processing, and brewing operations

Advantages:

Our shell and tube heat exchangers offer distinct advantages that make them the preferred choice for demanding industrial environments:

High Pressure & Temperature Capability – Robust construction enables operation under extreme conditions
Versatility – Handles liquids, gases, and steam across a wide range of process requirements
Fouling Tolerance – Suitable for services with dirty or fouling fluids
Easy Maintenance – Simple structure allows for straightforward cleaning and servicing, reducing downtime and maintenance costs
Corrosion Resistance – Available in a variety of corrosion-resistant materials to extend service life in aggressive environments
Mechanical Robustness – Greater durability compared to plate-type exchangers, particularly in high-temperature and high-pressure applications

Design & Manufacturing Standards:

All our shell and tube heat exchangers are designed and manufactured in compliance with internationally recognized standards:

ASME Code Section VIII, Divisions 1 & 2 – For pressure vessel design and fabrication
TEMA Standards – Class R (refinery service), Class C (commercial service), or Class B (chemical service) as required
Custom Engineering – Available in a full range of sizes, materials, and configurations to meet specific process requirements

TEMA standards focus on mechanical design, fabrication tolerances, and nomenclature specific to shell-and-tube heat exchangers, while ASME provides the essential code for pressurized components. Many of our exchangers are certified by both ASME and TEMA.

Customization Options:

We understand that every process is unique. Our shell and tube heat exchangers can be fully customized to meet your specific operating conditions:

Shell & Tube Materials – Carbon steel, stainless steel, duplex, nickel alloys, titanium, and more
Tube Dimensions – Diameters, wall thickness, and lengths to suit your duty
Baffle Design – Segmental, double-segmental, disc-and-doughnut, or helical
Nozzle Orientation & Sizes – Customized to fit your piping layout
Fouling Factors – Designed with appropriate margins for your service conditions

tube-shell-heat-exchager-assembly-structure

Why Choose Us?

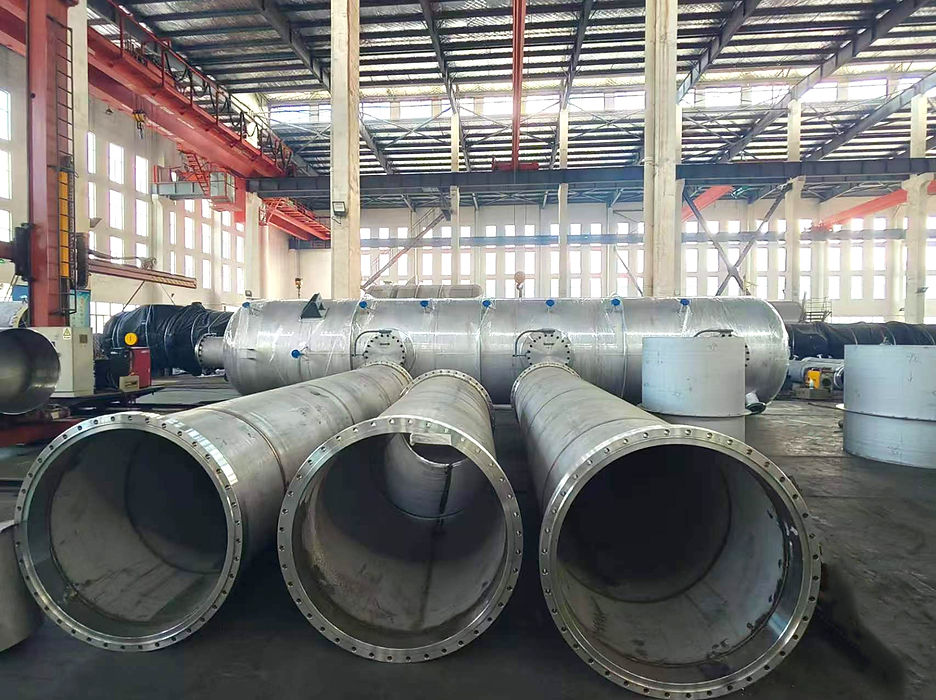

With years of experience in the design and fabrication of shell and tube heat exchangers, we combine engineering excellence with manufacturing precision. Every unit undergoes rigorous quality control, including hydrostatic testing, to ensure reliable performance in the field.

Our commitment to quality, on-time delivery, and responsive technical support has made us a trusted partner to oil and gas operators, chemical processors, and power generation facilities around the world.

Contact our technical sales team today to discuss your shell and tube heat exchanger requirements. We’ll help you select the right configuration, materials, and design to optimize your thermal management system.
